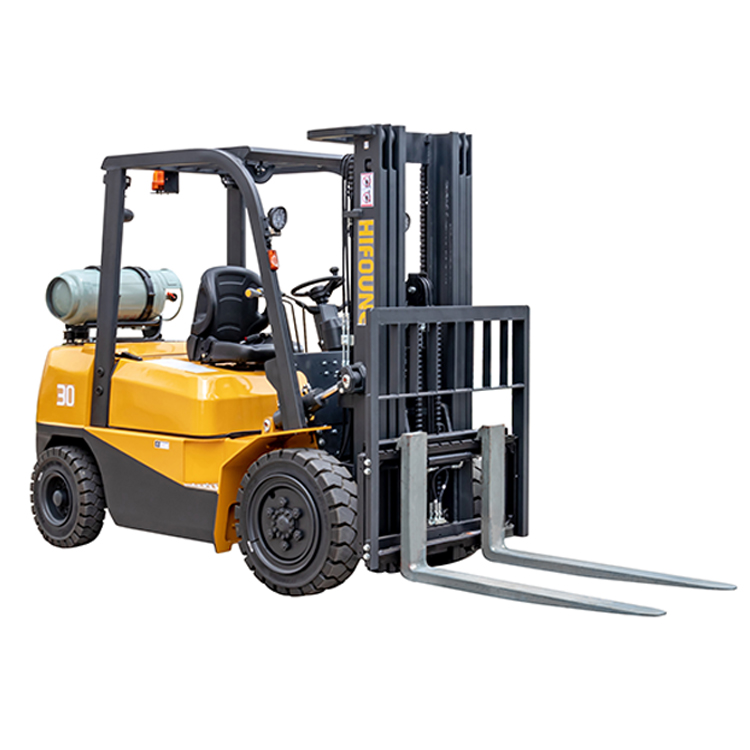

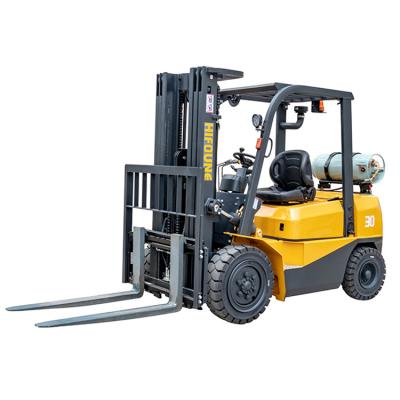

Chinese 2.5 Ton Mini Diesel Forklift Truck Warehouse

Chinese 2.5 Ton Mini Diesel Forklift Truck Warehouse

As industrial mechanization has become serious, the transportation and turnover of many goods are no longer the previous manual pallet trucks, and people have begun to design forklifts. Has many years of history. We are now mainly designing mining farms to produce diesel forklifts.

  • Brand:

    HIFOUNE
  • Item No.:

    FG30
  • Product origin:

    Xiamen, China
  • Color:

    White, Orange, Red
  • Shipping port:

    Xiamen Port
  • Lead Time:

    7 Days
Product Details

As industrial mechanization has become serious, the transportation and turnover of many goods are no longer the previous manual pallet trucks, and people have begun to design forklifts. Has many years of history. We are now mainly designing mining farms to produce diesel forklifts. Diesel forklifts are widely used in attraction, parking lots, cargo yards, factory workshops, warehouses, distribution centers and centers, etc., enter the cabins, sparks and spark containers for loading, unloading, and handling operations. They are equipment in transportation and container transportation. Our diesel forklifts are divided into many tonnages. There are 2.5ton diesel forklift truck, 3 tons diesel forklifts and so on.







About 2.5 Ton Mitsubishi Forklift Diesel Specification

Manufacturer Xiamen Hifoune Machinery Co.,Ltd
Model  FG20  FG25 FG30 FG35 FG40
Fuel   LPG&Gasoline
Operator Type   Driver/seat
Load Capacity   kg  2000   2500  3000  3500  4000
Load Center mm 500
Max.Lifting Height mm 3000
Free lifting height mm 150
Fork Size L*W*T mm 1220*122*40   1220*125*45  1220*125*50
Mast Tilting Angle Fwd/Bwd deg 6/12
Overall Length (without fork) mm 2605  2705  2760  2820
Overall Width mm 1150  1240  1300
Mast Height(Fork Lowered) mm 2040  2140
Overhead Guard Height mm 2090  2100
Turning raduis (exterior) mm  2170   2240  2400  2560
Min.right angle stacking aisle width mm  2010   2230  2330  2360  2480
Travelling Speed (Loaded/Unloaded) km/h 17/19 19/20
Lifting Speed (Loaded/Unloaded) mm/s 650/710 630/690
Lowering Speed (Loaded/Unloaded) mm/s 480/450
Max.drawbar pull (Loaded) N 18
Max.Gradability(Loaded) % 21
Service brake (Operation/Control) Hydraulic-foot pedal
Parking brake (Operation/Control) Mechanical-hand lever
Battery (voltage/capacity) V/ah 12/80
Truck Weight   kg 3590   3810  4110  4410  4800
Weight distribution Loaded (Front/Rear) kg 4920/670 5615/695 6256/854 7040/870 7832/968
Weight distribution Unloaded (Front/Rear) kg 1615/1975 1715/2095 1850/2260 1985/2425 2160/2640
Tyre   Pneumatic Tire
Tyre Size (Front/Rear) 7.00-12-12PR/6.00-9-10PR 28*9-15-14PR/6.50- 0-10PR 250-15-16PR
6.50-10-14PR
Tyre Number (Front/Rear)  2/2
Front tread mm 970  1000
Rear tread mm 970
Engine model KUBOTA     WG2503-GL-E3
Rated power KW/rpm 46.0/2700
Rated torque N-m/rpm 178.0/1400
Number of cylinder 4
Displacement L 2.491
Emission Standards EURO Stage 5
Fuel tank capacity L 70
Transmission box type Electronic hydraulic transmisson

Mitsubishi Forklift Diesel Advantages
Using high-climbing electric gearbox, compared with other products, the work efficiency is increased by 5%, the climbing angle is increased by 8%, the noise is reduced by 3 to 5 decibels, and the thermally stable temperature is reduced by 8 to 10 degrees Celsius;
The load-sensing steering priority hydraulic system is adopted to reduce pressure loss, save energy and reduce consumption, and increase work efficiency by more than 20% compared with other brands.
Large-capacity aluminum tube with radiator optimizes the heat dissipation channel and further enhances the heat dissipation capacity of the vehicle;
The continuously optimized mast system greatly improves the working field of vision and working stability;
The use of a new suspension system and sound insulation and noise reduction materials greatly reduces vibration and noise, so that the driver feels more comfortable during long-term operation and reduces fatigue;
Combined color instrument, strong human-computer interaction, timely and accurate feedback of vehicle operating status;
Spacious operating space and comfortable seats allow users to enjoy driving pleasure;
Rich configuration
A variety of engines such as Isuzu, Mitsubishi, Kubota, China Xinchai, etc. are available;
Various wide view masts, two-stage full-free mast and three-stage full-free mast;
Solid tires, seamless tires, cabs, air conditioners, etc.;
Various accessories, such as side shifters, strapping clamps, paper roll clamps, carton clamps, bucket clamps, rotators, push pullers, fork positioners, etc.
