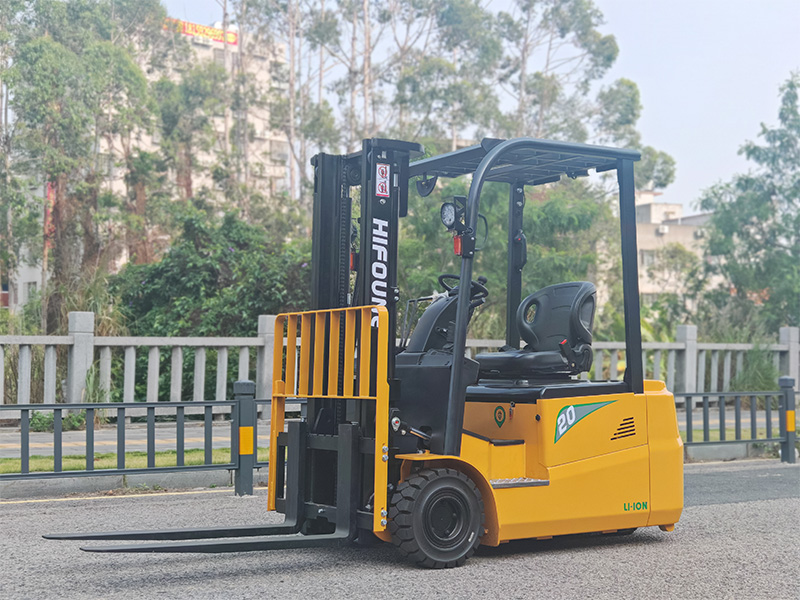

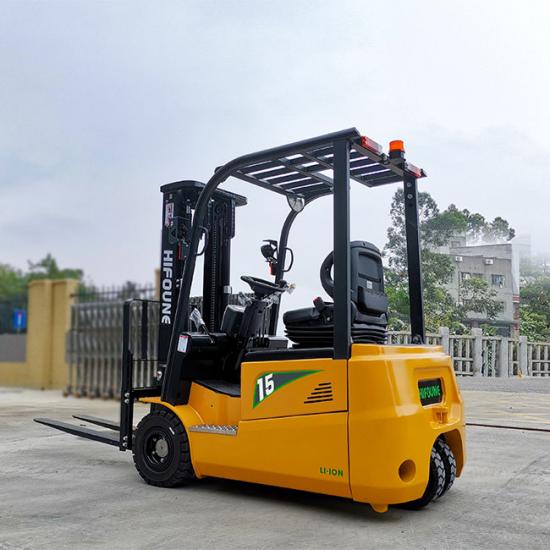

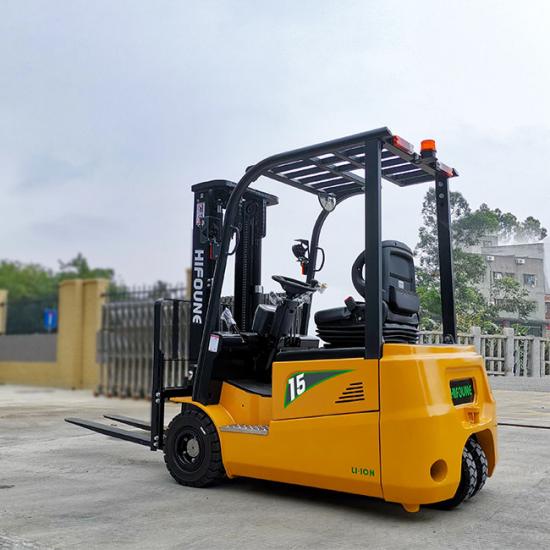

3 Wheel Electric Forklift

Max.Lifting Height 3000mm

The 1.5-Ton 3-Wheel Electric Forklift is a high-performance, precision-engineered solution designed to redefine stability and maneuverability in your workspace. Powered by an advanced Curtis controller, this forklift offers a safer, more stable driving experience, ensuring seamless control even in the most demanding environments.

Brand:
HIFOUNE
Item No.:
FB15
Payment:
T/T LC
Product origin:
China
Color:
white/yellow/other
Shipping port:
Xiamen
Lead Time:
30-40 days

Product Details

LITHIUM BATTERY COUNTERBALANCED FORKLIFT FBL15/18/20

content	No.	Project	UNIT
Characteristic	1	Brand		Hifoune	Hifoune	Hifoune
	2	Model		FBL15(FB15)	FBL18(FB18)	FBL20(FB20)
	3	Power Unit		Battery
	4	Driving mode		Seated
	5	Rated Capacity	Kg	1500	1800	2000
	6	Load Center	mm	500
	7	Max.Lifting Height	mm	3000
Weight	8	Weight(Including Battery)	kg	3100(3400	3300(3600)	3500(3800
Weight	9	Battery Weight	kg	Li-ion 240kg (L-A 640kg)	Li-ion 240kg (L-A 760kg)	Li-ion 240kg (L-A 760kg)
Dimensions	10	Front Overhand	mm	390
	11	Wheelbase	mm	1360		1460
	12	Mast Tilting Angle (Fwd/Bwd)		5/7
	13	Mast Lowered Height	mm	2005
	14	Free Lifting Height	mm	120
	15	Max.Lifting Height	mm	3970
	16	Overhead Guard Height	mm	1996
	17	Driver's Seat Height	mm	985
	18	Overall Length	mm	1965		2065
	19	Overall Width	mm	1120
	20	Fork Size (LxWxT)	mm	920×100×40
	21	Min.Ground Clearance,mast	mm	95
	22	Min.Ground Clearance,middle of chassis	mm	90
	23	Min.Turning Radius	mm	1640		1740
Tire	24	Tire type		Solid Tire
	25	Tire Number(X=Driving Tire)		2×/2
	26	Front Tire Type		18X7-8
	27	Rear TireType		15X4.5-8
	28	Front Wheel Tread	mm	950
	29	Rear Wheel Tread	mm	200
Performance	30	Travelling Speed(Loaded/Unloaded)	Km/h	14/14
	31	Lifting Speed(Loaded/Unloaded)	mm/s	290/440		240/450
	32	Maximum traction force(Loaded/Unloaded)	kN		/	/
	33	Max.Gradeability (Loaded/Unloaded)	%	16/18	15/17	15/15
Drive system	34	Travelling Motor Power	KW	5.4AC*2		5.5AC*2
	35	Working Motor Power	KW	8.6AC		9.6AC
	36	Standard battery (optional),voltage/capacity	V/Ah	Li-ion 51.2V/460Ah (L-A 48V/420Ah)	Li-ion 51.2V/460Ah (L-A 48V/500Ah)	Li-ion 51.2V/460Ah (L-A 48V/500Ah)
	37	Standard charger(optional)	V/A	Li-ion 48V/200A (L-A 48V/60A)	Li-ion 48V/200A (L-A 48V/70A)	Li-ion 48V/200A (L-A 48V/70A)

Key Performance Advantages

Responsive Power: Equipped with a full maintenance-free AC drive system, the vehicle reacts with lightning speed and pinpoint accuracy. Say goodbye to frequent upkeep and hello to uninterrupted workflow.
Superior Visibility: Our signature wide-view gantry design maximizes the operator's line of sight, significantly boosting safety and work efficiency.
Optimized Engineering: With a thoughtfully designed layout, this forklift features a low center of gravity and a compact, lightweight frame. It is the ultimate asset for navigating tight spaces without sacrificing lifting power.

The Result: A perfectly balanced machine that allows you to spend less time on maintenance and more time hitting your productivity targets. Experience a more reasonable, reliable, and refined way to move your world.

Our Factory

Our company. is located in the Xianganindustrial zone of Xiamen torch high tech Zone. It is dedicated to providing reliable and efficient material handling equipment and solutions for customers. It is a professional company integrating R & D, manufacturing, sales and service. The company's main products include a full range of internal combustion counterbalanced forklift trucks, electric counterbalance forklift trucks, and electric warehouse equipments.

We not only aim to provide excellent products to customers in our full range of products, but also provide excellent service to customers in all links.

Certifications

FAQ

Q. Why choose HIFOUNE?
A. We are a professional forklift manufacturer and supplier in Xiamen of china with more than 20 years exported experience.Most of our staff are from XGMA machinery.

Q.What are our advantages compared with other manufactures/factories?
A.Carefully select regular manufacturers for supporting spare parts, like engines, bridge,transmissions, and many parts designed and produced by ourselves. Our C series forklift adopt technology, most of parts are compitible with forklift, but have cheaper price.

Q. Which payment terms can we accept?
A. Normally we can work on T/T or L/C.
A.1) On T/T term, 30% payment is required in advance for production, 70% balance shall be paid before delivery or againes the copy of original B/L for old long cooperation clients.
A.2) On L/C term, 100% irrevocable LC at sight without "soft clauses" can be accepted.

Q. Can we provide OEM SERVICE?
A. HIFOUNE can provide customized products according to customers' requirements, both OEM and ODM are acceptable.
