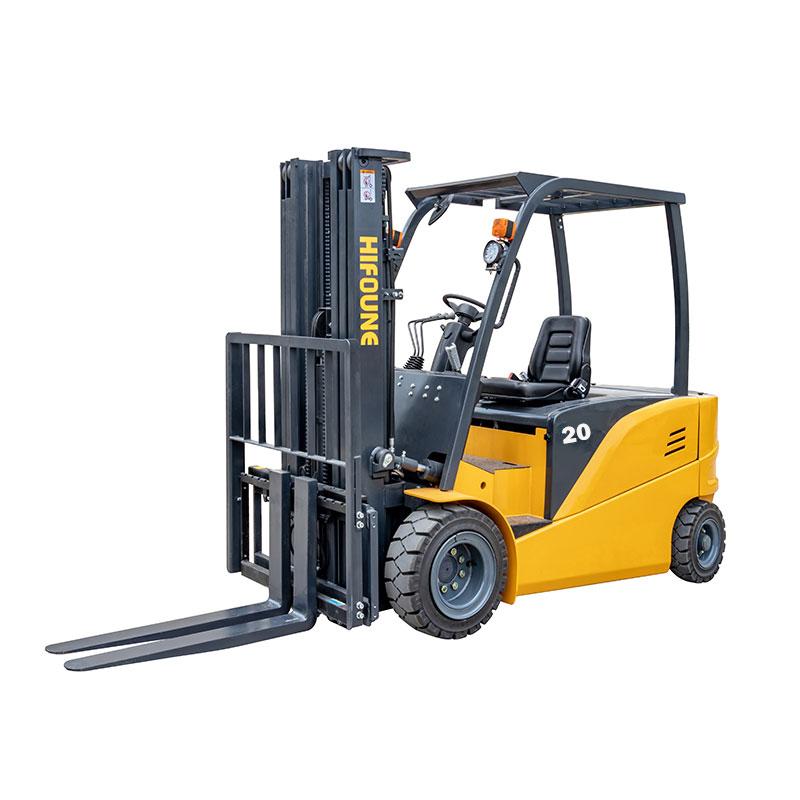

Hifoune FB20 is an electric forklift at 2ton capacity powered by batter, choosable at different tonnage
Brand:
HIFOUNEItem No.:
FB20
LEAD ACID BATTERY COUNTER BALANCE FORKLIFT FB15/18/20/25/30/35 | |||||
Electric forklift parameters table | |||||
Content | No. | Projects | |||
Character | 1 | Brand | Hifoune | Hifoune | Hifoune |
2 | Model | FB15 | FB18 | FB20 | |
3 | Power mode | Lead-acid battery | Lead-acid battery | Lead-acid battery | |
4 | Driving mode | Seat | Seat | Seat | |
5 | Load capacity | 1500Kg | 1750Kg | 2000Kg | |
6 | Load center | 500mm | 500mm | 500mm | |
7 | Max.lifting height | 3000mm | 3000mm | 3000mm | |
Weight | 8 | Self-weight | 2940kg | 3090kg | 4050kg |
9 | Battery weight | 710kg | 760kg | 960kg | |
Size | 10 | Front overhang | 406mm | 411mm | 470mm |
11 | Wheelbase | 1380mm | 1380mm | 1500mm | |
12 | Mast tilting angle (fvd/bwd) | 5/10 | 5/10 | 6/12 | |
13 | Mast height(fork lowered) | 1976mm | 1976mm | 2140mm | |
14 | Free lifting height | 145mm | 145mm | 140mm | |
15 | Max.liting height | 3955mm | 3955mm | 4129mm | |
16 | Overhead guard height | 2130mm | 2130mm | 2140mm | |
17 | Driver's seat height | 1045mm | 1045mm | 1110mm | |
18 | Overall length(without fork) | 2098mm | 2103mm | 2369mm | |
19| | Overall width | 1120mm | 1138mm | 1168mm | |
20 | Fork size:thickness*width*length | 920×100×35mm | 920×100×35mm | 1070×122×40mm | |
21 | Min.ground clearance(mast) | 85 | 85 | 105 | |
22 | Min.ground clearance(middle of chassis) | 110mm | 110mm | 125mm | |
23 | Min.turning radius | 1900mm | 1900mm | 2070mm | |
Tires | 24 | Tire type | pneumatic tire | pneumatic tre | pneumatic tire |
25 | Tire number(X=driving tire) | 2×12 | 2×12 | 2×12 | |
26 | Front tire | 6.00-9-10PR | 21×8-9-14PR | 7.00-12-12PR | |
27 | Rear tire | 5.00-8-10PR | 5.00-8-10PR | 18X7-8-14PR | |
28 | Travelling speed(loaded/unloaded) | 14/14Km/h | 14/14Km/h | 13/15Km/h | |
29 | Lifting speed(loaded/unloaded) | 290/440mm/s | 285/440mm/s | 270/460mm/s | |
Performance | 30 | Max.drawbar pull(loadunloaded) | 2025/10/9kN | 11/9.5kN | 14.1/13.4kN |
31 | Max.gradeability(loaded/unloaded) | 12/13% | 12/13% | 15/16% | |
System | 32 | Travelling motor power | 8ACKW | 8ACKW | 11.1ACKW |
33 | Working motor power | 8.2DC(8.6AC)KW | 8.2DC(8.6AC)KW | 10.5DC(12AC)KW | |
34 | Battery (voltage/capacity) | 48/420V/Ah | 48/420V/Ah | 48/560V/Ah | |
35 | Standard charger specifications(output) | 48/55V/A | 48/55V/A | 48/80V/A |
Product Features
Counterbalance 1.5-3.0 ton Electric Forklift
Main Features:
Balance 2.0 ton electric forklift is a front-drive horizontal balance forklift with high speed ratio drive axle box assembly for higher working efficiency.
● Horizontal handling
● Block stacking
● loading / unloading goods
Our Factory
Our company. is located in the Xianganindustrial zone of Xiamen torch high tech Zone. It is dedicated to providing reliable and efficient material handling equipment and solutions for customers. It is a professional company integrating R & D, manufacturing, sales and service. The company's main products include a full range of internal combustion counterbalanced forklift trucks, electric counterbalance forklift trucks, and electric warehouse equipments.
We not only aim to provide excellent products to customers in our full range of products, but also provide excellent service to customers in all links.
Q. Why choose HIFOUNE?
A. We are a professional forklift manufacturer and supplier in Xiamen of china with more than 20 years exported experience.Most of our staff are from XGMA machinery.
Q.What are our advantages compared with other manufactures/factories?
A.Carefully select regular manufacturers for supporting spare parts, like engines, bridge,transmissions, and many parts designed and produced by ourselves. Our C series forklift adopt technology, most of parts are compitible with forklift, but have cheaper price.
Q. Which payment terms can we accept?
A. Normally we can work on T/T or L/C.
A.1) On T/T term, 30% payment is required in advance for production, 70% balance shall be paid before delivery or againes the copy of original B/L for old long cooperation clients.
A.2) On L/C term, 100% irrevocable LC at sight without "soft clauses" can be accepted.
Q. Can we provide OEM SERVICE?
A. HIFOUNE can provide customized products according to customers' requirements, both OEM and ODM are acceptable.
