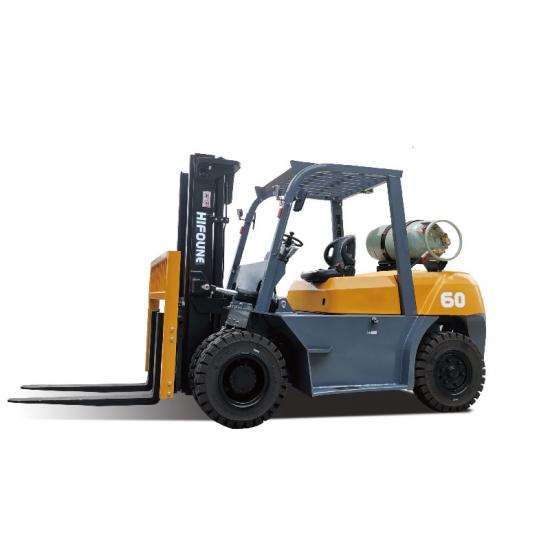

As one of the main logistics and transportation equipment of enterprises, 6 ton lpg forklift are playing an increasingly important role in the material transportation links of our work and life. Equipped with EURO Stage 5/EPA.But how many people know about internal combustion vehicles? How much do you know about the advantages and disadvantages of internal combustion truck balance forklifts.
Brand:
HIFOUNEItem No.:
FG60Product origin:
Xiamen, ChinaColor:
White, Orange, RedShipping port:
Xiamen PortLead Time:
15 DaysAs one of the main logistics and transportation equipment of enterprises, 6 ton Lpg Gas Forklift are playing an increasingly important role in the material transportation links of our work and life. But how many people know about internal combustion vehicles? How much do you know about the advantages and disadvantages of internal combustion truck balance forklifts? Hifoune Machinery Co., Ltd. will introduce to you the advantages and disadvantages of the china nissan forklift truck.
LPG FORKLIFT FG50/60/70/80 | |||||||
Model | UNIT FG50 | FG60 | FG70 | FG80 | |||
Specifications | Power Unit | LPG | |||||
Operator Type | Driver/seat | ||||||
Transimission BoX Type | Electronic hydraulic transmission | ||||||
Rated Capacity | kg | 5000 | 6000 | 7000 | 8000 | ||
Load Center | mm | 600 | 600 | 600 | 600 | ||
Max.Lifting Height | mm | 3000 | 3000 | 3000 | 3000 | ||
TyreType | Pneumatic Tyre | ||||||
Tyre Number | Front | 4 | 4 | 4 | 4 | ||
Rear | 2 | 2 | 2 | 2 | |||
Tyre Size | Front | 8.25-15-14PR | 8.25-15-14PR | 8.25-15-14PR | 8.25-15-14PR | ||
Rear | 8.25-15-14PR | 8.25-15-14PR | 8.25-15-14PR | 8.25-15-14PR | |||
Performance | Lifting Speed | Loaded | mm/s | 460 | 460 | 460 | 460 |
Unloaded | 500 | 500 | 500 | 500 | |||
Lowering Speed | Loaded | mm/s | 500 | 500 | 500 | 500 | |
Unloaded | 450 | 450 | 450 | 450 | |||
Travelling Speed | Loaded | km/h | 25 | 25 | 25 | 25 | |
Unloaded | 30 | 30 | 30 | 30 | |||
Max.Gradeability(Loaded) | % | 33 | 30 | 27 | 27 | ||
Max.Drawbar Pull(Loaded) | kg | 5500 | 5500 | 5500 | 5500 | ||
Mast Titing Angle(Fwd/Bwd) | deg | 6/12 | 6/12 | 6/12 | 6/12 | ||
Free Lifting Height | mm | 145 | 145 | 145 | 145 | ||
Turning Radius | mm | 3250 | 3300 | 3370 | 3480 | ||
Dimensions | Overall Length(with fork) | mm | 4470 | 4620 | 4870 | 5020 | |
OverallWidth | mm | 2000 | 2000 | 2000 | 2000 | ||
Overhead Guard Height | mm | 2480 | 2480 | 2480 | 2480 | ||
Fork Size(L×WxT) | mm | 1220×150×55 | 1220×150×60 | 1220×150×65 | 1220×170×75 | ||
Mast Height(Fork lowered) | mm | 2500 | 2500 | 2500 | 2500 | ||
Battery (Voltage/Capacity) | V/Ah | 2×12/80 | 2×12/80 | 2×12/80 | 2×12/80 | ||
Truck Weight | KG | 7900 | 8550 | 9200 | 10200 | ||
FuelTankCapacity | L | 140 | 140 | 140 | 145 | ||
Engine | Engine model | PSI4.3 | |||||
Rated power | KW/rpm | 77.55 | |||||
Speed at rated power | r/min | 2300 | |||||
Max.torque | N.m | 329 | |||||
Speed at max.torque | r/min | 1700 | |||||
Displacement | L | 4.294 | |||||
Emission Standards | EPA |
The radiator system of the internal combustion forklift has a radiator and a guard. The radiator is also called a water tank and consists of three parts: a water supply room, a water outlet room, and a heat dissipation core. The cooling liquid flows in the radiator core, and the air passes through the radiator core, so that the cooling water transfers the heat absorbed from the internal combustion engine to the outside air, which can reduce the temperature of the cooling water for recirculation. The function of the hood is to improve the efficiency of the fan by letting all the air sucked in by the fan pass through the radiator. Internal combustion forklifts are generally powered by diesel, gasoline, liquefied petroleum gas or natural gas engines, with a load capacity of 1.2 to 8.0 tons, and a working channel width of 3.5 to 5.0 meters. Considering exhaust gas and noise, they are usually used outdoors, factories or other Exhaust gas and noise can work continuously for a long time due to easy fuel supply, and can also work in harsh environments such as rainy days. When the pump is not working properly or the center distance between the driving wheel and the driven wheel of the fan pulley is incorrect, the belt becomes loose and slips, the speed of the driven wheel decreases, the pump speed decreases, the pump flow decreases, or the pipeline between the cylinder liners of the internal combustion engine is blocked or The thermostat malfunctions, the water circulation of the entire system is suspended, etc.; these factors will cause the internal water temperature of the internal combustion engine to rise sharply, causing the cooling system to overheat. In addition, the internal combustion engine may cause the cooling system to overheat due to other malfunctions such as incorrect ignition timing.
Warehouse forklifts are mainly designed for cargo handling in warehouses. Manual pallet forklifts are driven by humans, but all others are driven by electric motors. Because of their compact body, flexible movement, light weight, and good environmental performance, they are widely used in the energy storage industry.If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
