Gas/LPG forklift A series-2 ton

Gas/LPG forklift A series-2 ton

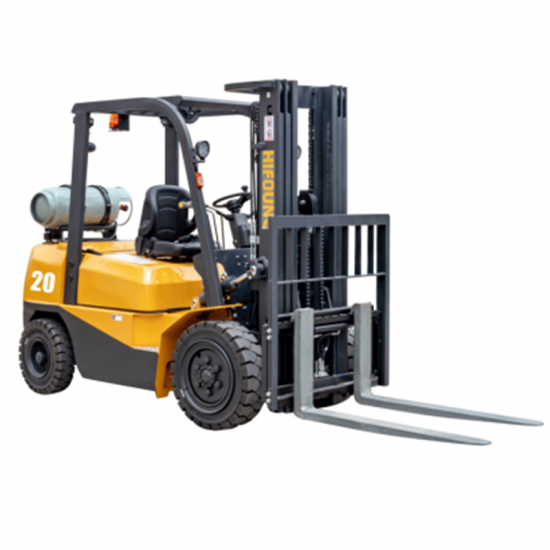

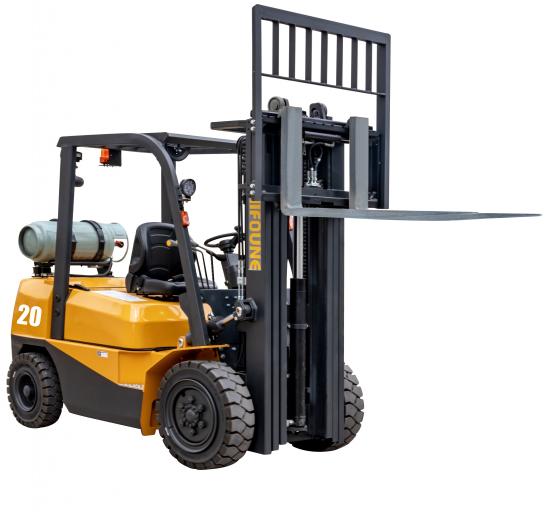

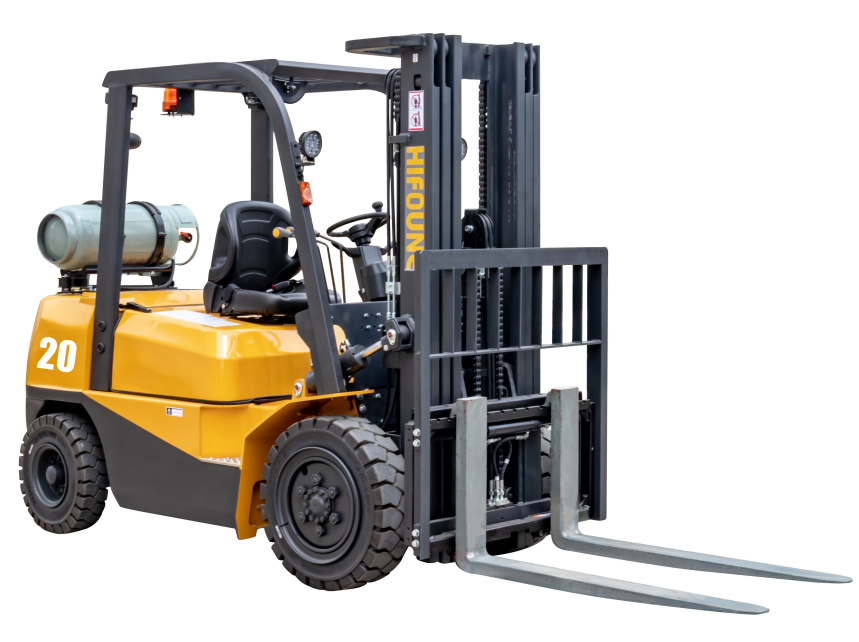

Hifoune FG20T is a forklift at 2ton capacity which powered by gas&LPG, color customizable, please contact us for more information.

  • Brand:

    HIFOUNE
  • Item No.:

    FG20T
  • Payment:

    T/T LC
  • Product origin:

    China
  • Color:

    white/yellow/other
  • Shipping port:

    Xiamen
  • Lead Time:

    30-40 days
Product Details

Model UNIT FG20T FG25T
Specifications Power Unit Diesel
Operator Type Driver/Seat
Transimission Bo× Type Electronic hydraulic transmission
Rated Capacity kg 2000 2500
Load Center mm 500 500
Max.Lifting Height mm 3000 3000
Tire Type Pneumatic Tire
Tire Number  Front 2 2
Rear 2 2
Tire Size  Front 7.00-12-12PR 7.00-12-12PR
Rear 6.0-9-10PR 6.0-9-10PR
Performance Lifting Speed Loaded mm/s 560 550
Unloaded 580 580
Lowering Speed  Loaded mm/s 480 480
Unloaded 450 450
Travelling Speed  Loaded km/h 20 20
Unloaded 21 21
Max.Gradeability (Loaded) % 20 20
Max.Drawbar Pull (Loaded) kn 14 14
Mast Tilting Angle (Fwd/Bwd) deg 6/12 6/12
Free Lifting Height mm 140 140
Turning Radius mm 2150 2210
Dimensions Overall Length (with fork) mm 3640 3660
Overall Width mm 1150 1150
Overhead Guard Height mm 2125 2125
Fork Size (L×W×T) mm 1220×122×40 1220×122×40
Mast Height (Fork lowered) mm 2090 2090
Battery (Voltage/Capacity) V/Ah 12/90 12/90
Truck Weight kg 3440 3765
Fuel Tank Capacity L 70 70
Engine
Engine Brand  NISSAN NISSAN
Model K21 K21
Rated Power kw/rpm 31.2/2250 31.2/2250
Rated torque n-m/rpm 143.7/1600 143.7/1600
Number of cylinder 4 4
Displacement 2.06 2.06

Product Features


Small ton internal GAS/LPG forklift
Character:
1.Strong power system
2.Wide-view mast
3.Unique overhead guard design
4.Low non-slip pedal
5.Adjustable safety seat
6.Solid-state LCD digital meter
7.Eco-friendly design

Our Factory


    Our company. is located in the Xianganindustrial zone of Xiamen torch high tech Zone. It is dedicated to providing reliable and efficient material handling equipment and solutions for customers. It is a professional company integrating R & D, manufacturing, sales and service. The company's main products include a full range of internal combustion counterbalanced forklift trucks, electric counterbalance forklift trucks, and electric warehouse equipments.



    We not only aim to provide excellent products to customers in our full range of products, but also provide excellent service to customers in all links.

3 ton diesel forklift 4 wheel small tonnage lifting truck xinchai isuzu engine

Certifications

3 ton diesel forklift 4 wheel small tonnage lifting truck xinchai isuzu engine

FAQ

Q. Why choose HIFOUNE?
A. We are a professional forklift manufacturer and supplier in Xiamen of china with more than 20 years exported experience.Most of our staff are from XGMA machinery.

Q.What are our advantages compared with other manufactures/factories?
A.Carefully select regular manufacturers for supporting spare parts, like engines, bridge,transmissions, and many parts designed and produced by ourselves. Our C series forklift adopt TCM technology, most of parts are compitible with TCM forklift, but have cheaper price.


Q. Which payment terms can we accept?
A. Normally we can work on T/T or L/C.
A.1) On T/T term, 30% payment is required in advance for production, 70% balance shall be paid before delivery or againes the copy of original B/L for old long cooperation clients.
A.2) On L/C term, 100% irrevocable LC at sight without "soft clauses" can be accepted.

Q. Can we provide OEM SERVICE?
A. HIFOUNE can provide customized products according to customers' requirements, both OEM and ODM are acceptable.
