How many do you know about forklift truck

  • 2021-09-24

As we all know, with the booming economy, industries such as logistics and warehousing or cargo transportation are inseparable from forklifts in terms of loading. But in fact, how much do you know about 3 ton forklift truck ? Xiamen Hifoune Machinery Co., Ltd. is a forklift factory specializing in the design and manufacture of forklifts. Below we will introduce the knowledge of forklifts to everyone.

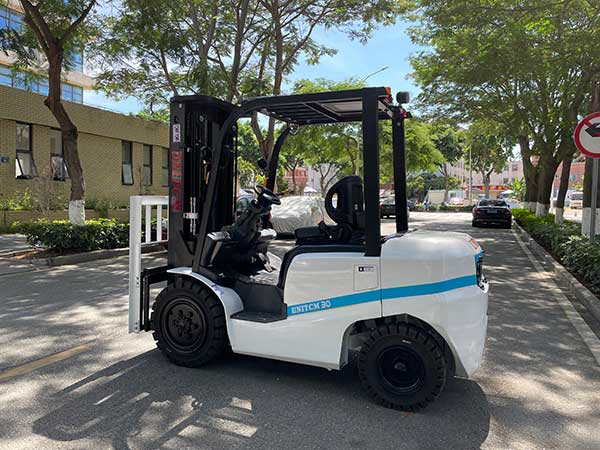

3 ton-diesel forklift truck

1. Rated lifting capacity: The rated lifting capacity of a forklift means that the distance between the center of gravity of the cargo and the front wall of the fork is not greater than the maximum weight of the cargo that is allowed to be lifted when the front wall of the fork. The distance between the load centers, expressed in t (tons). When the center of gravity of the cargo on the fork exceeds the specified load center distance, due to the limitation of the longitudinal stability of the forklift, the lifting weight should be reduced accordingly.

2. Load center distance: Load center distance refers to the horizontal distance from the center of gravity to the front wall of the vertical section of the fork when standard cargo is placed on the fork, in mm (millimeters). For a 1t forklift, the specified load center distance is 500mm.

3. Maximum lifting height: The maximum lifting height refers to the vertical distance between the upper surface of the horizontal section of the fork and the ground when the forklift is fully loaded and the goods are lifted to the highest position on a flat and solid ground.

4. The inclination angle of the mast. The mast inclination angle refers to the maximum inclination angle of the mast forward or backward relative to its vertical position on an unloaded flat and solid ground. The forward inclination angle is convenient for fork picking and unloading; the backward inclination angle is to prevent the goods from slipping off the forks when the forklift is carrying the goods. According to operational needs, Hyundai Forklift is a joint venture between Jingcheng Heavy Industry and Hyundai! Generally, the forward inclination angle of a forklift is 3°~6°, and the backward inclination angle is 10°~12°.

5. Maximum lifting speed: The maximum lifting speed of a forklift usually refers to the maximum lifting speed of the goods when the forklift is fully loaded, expressed in m/min (meters per minute). Increasing the maximum lifting speed can improve work efficiency; however, if the lifting speed exceeds the limit, cargo damage and machine damage are prone to accidents. At present, the maximum lifting speed of domestic forklifts has been increased to 20m/min.

6. Maximum travel speed: Increasing the travel speed has a great impact on improving the operating efficiency of the forklift. For an internal combustion forklift with a lifting capacity of 1t, the maximum travel speed when fully loaded is not less than 17m/min.

7. Minimum turning radius: When the forklift is driving at a low speed with no load and turning with a full steering wheel, the minimum distance from the outermost and innermost sides of the vehicle body to the turning center is called the minimum outer turning radius Rmin and the minimum inner turning radius rmin. ·The smaller the minimum outer turning radius, the smaller the footprint required for the forklift to turn and the better the maneuverability.

8. Minimum ground clearance: The minimum ground clearance refers to the distance from the lowest point fixed on the vehicle body to the ground outside the wheel. It represents the ability of a forklift to traverse raised obstacles on the ground without a collision. The greater the minimum ground clearance, the higher the passability of the forklift.

9. Wheelbase and wheelbase: Forklift wheelbase refers to the horizontal distance between the centerline of the front and rear axles of the forklift. Wheelbase refers to the center distance of the left and right wheels on the same axis. Increasing the wheelbase is conducive to the longitudinal stability of the forklift, but it increases the length of the body and the minimum turning radius. Increasing the wheelbase is conducive to the lateral stability of the forklift, but it will increase the overall width of the vehicle body and the minimum turning radius.

10. The minimum width of the right-angle channel: The minimum width of the right-angle channel refers to the minimum width of the channel that intersects at right angles when the forklift reciprocates. Expressed in millimeters. Generally speaking, the smaller the minimum width of the right-angle channel, the better the performance.

11. The minimum width of the stacking lane: the minimum width of the stacking lane is the minimum width of the lane when the forklift is in normal operation. If you have more different views or know more about the forklift industry, we look forward to you having more exchanges with us. We are also looking for partners who can cooperate with us for a long time.

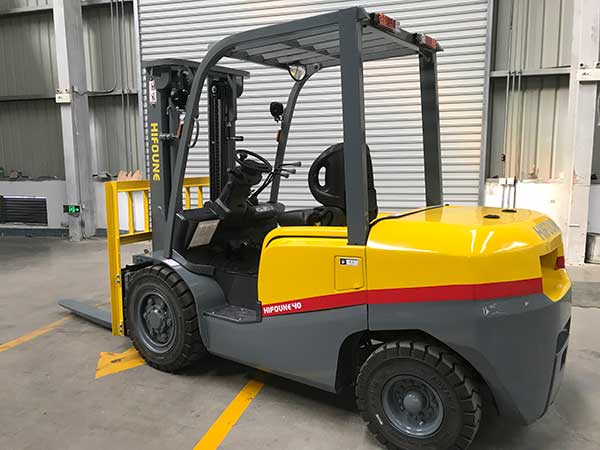

4 ton diesel forklift

If you want to know more about our forklift information, you can send us an email and we will contact you in the shortest possible time. My email address is: [email protected]
