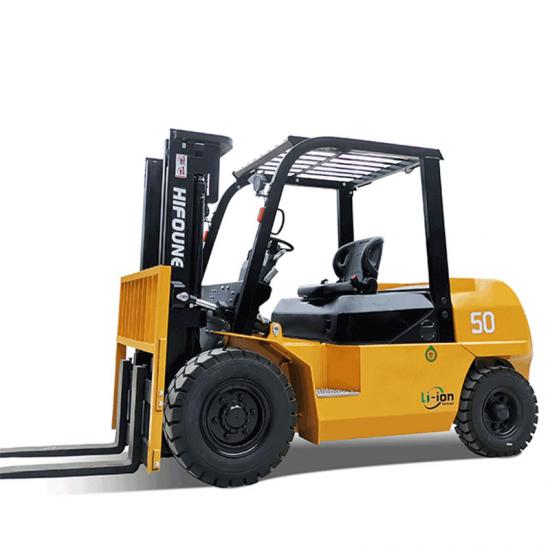

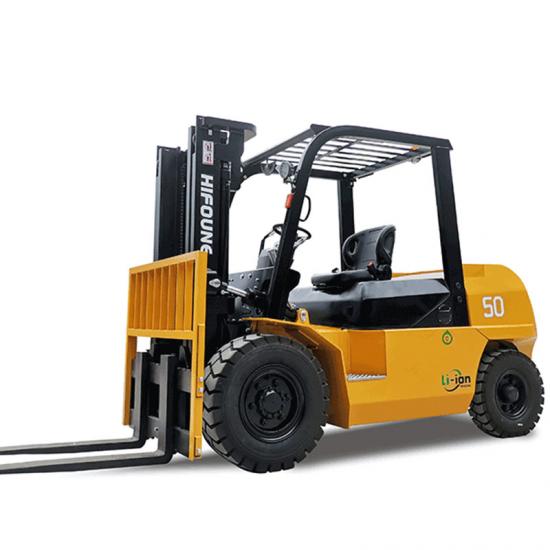

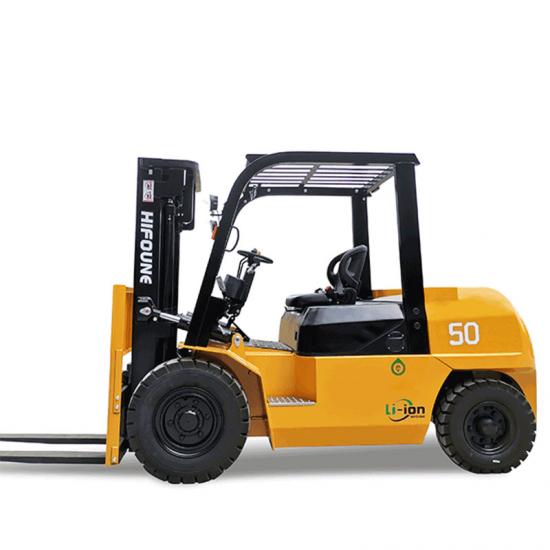

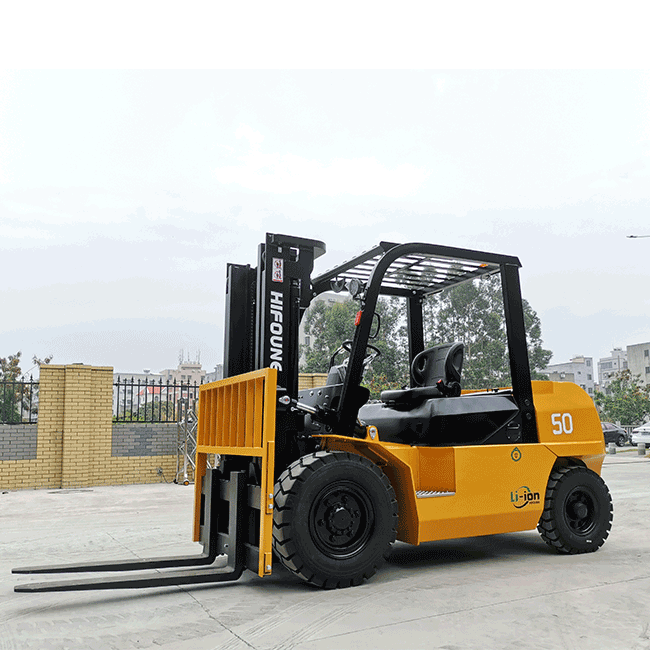

Hifoune FB50 is an electric forklift at 5ton capacity powered by batter, choosable at different tonnage
Brand:
HIFOUNEItem No.:
FB50

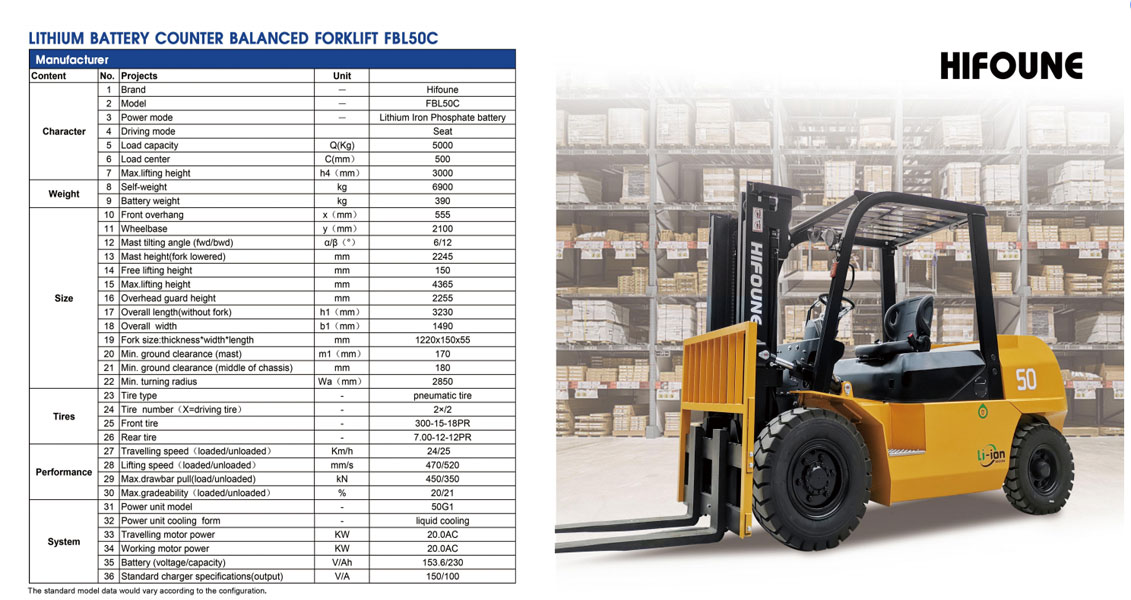

| LITHIUM BATTERY COUNTERBALANCED FORKLIFT FBL50C | ||||
| Manufacturer | ||||
| Content | No. | Projects | Unit | |
| Character | 1 | Brand | Hifoune | |
| 2 | Model | FBL50C | ||
| 3 | Power mode | Lithium Iron Phosphate battery | ||
| 4 | Driving mode | Seat | ||
| 5 | Load capacity | Q(Kg) | 5000 | |
| 6 | Load center | C(mm) | 500 | |
| 7 | Max.liftingheight | h4(mm) | 3000 | |
| Weight | 8 | Self-weight | kg | 6900 |
| 9 | Battery weight | kg | 390 | |
| Size | 10 | Front overhang | x(mm) | 555 |
| 11 | Wheelbase | y(mm) | 2100 | |
| 12 | Mast tilting angle (fwd/bwd) | a/β(°) | 6/12 | |
| 13 | Mast height(fork lowered) | mm | 2245 | |
| 14 | Free lifting height | mm | 150 | |
| 15 | Max.lifting height | mm | 4365 | |
| 16 | Overhead guardheight | mm | 2255 | |
| 17 | Overall length(without fork) | h1(mm) | 3230 | |
| 18 | Overall width | b1(mm) | 1490 | |
| 19 | Fork size:thickness*width*length | mm | 1220x150x55 | |
| 20 | Min.ground clearance (mast) | m1(mm) | 170 | |
| 21 | Min.ground clearance (middle of chassis) | mm | 180 | |
| 22 | Min.turning radius | Wa(mm) | 2850 | |
| Tires | 23 | Tire type | pneumatic tire | |
| 24 | Tire number(X=driving tire) | 2×/2 | ||
| 25 | Front tire | 300-15-18PR | ||
| 26 | Rear tire | 7.00-12-12PR | ||
| Performance | 27 | Travelling speed(loaded/unloaded) | Km/h | 24/25 |
| 28 | Lifting speed(loaded/unloaded) | mm/s | 470/520 | |
| 29 | Max.drawbar pull(load/unloaded) | kN | 45/35 | |
| 30 | Max.gradeability(loaded/unloaded) | % | 20/21 | |
| System | 31 | Power unit model | 50G1 | |
| 32 | Power unit cooling form | liquid cooling | ||
| 33 | Travelling motor power | KW | 20.0AC | |
| 34 | Working motor power | KW | 20.0AC | |
| 35 | Battery (voltage/capacity) | V/Ah | 153.6/230 | |
| 36 | Standard charger specifications(output) | V/A | 150/100 | |
| The standard model data would vary according to the configuration. | ||||
LITHIUM BATTERY FBL50C COUNTER BALANCED FORKLIFT
1.Extra-wide mast with wide field of view;
2.Excellent ergonomics technology;
3.Short body, flexible space;
4.Fast charging port, charge and use at any time;
5.System self-inspection to ensure that all parts meet the working conditions before starting the forklift;
6.Completely cut off the lithium battery power supply to avoid lithium battery power loss due to long-term storage;
7.Reduce copper consumption, reduce motor electromagnetic noise, improve heat dissipation performance;
8.High space utilization rate, andincrease overall efficiency by 20%;
9.Intelligent lithium battery charger;
10.Open the hood at a large anglefor easy maintenance;
11.Large capacity lithium battery;
12.Large-screen interactive display instrument;
Previous :
1.5 ton 3 Wheel Electric ForkliftNext :
2.5 Ton Empilhadeira Electric Forklift Lithium BatteryIf you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
Categories
Hifoune FB15 is an electric forklift at 1.5ton capacity powered by batter, choosable at different tonnage

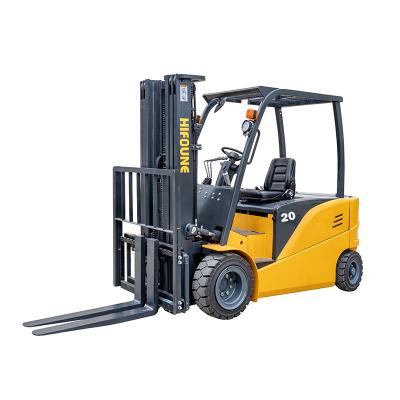

Hifoune FB20 is an electric forklift at 2ton capacity powered by batter, choosable at different tonnage

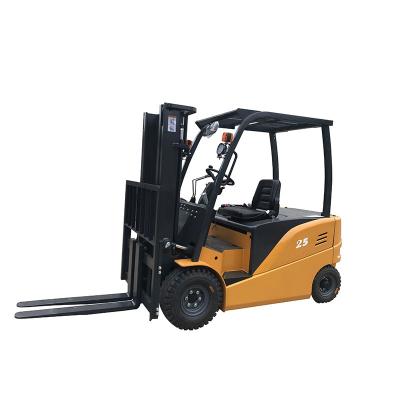

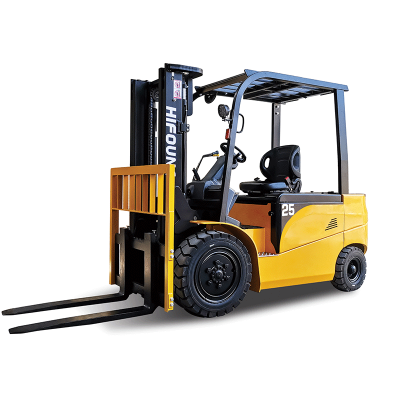

Hifoune FB25 is an electric forklift at 2.5ton capacity powered by batter, choosable at different tonnage
Hifoune FB30 is an electric forklift at 3.0ton capacity powered by batter, choosable at different tonnage
Electric forklifts refer to forklifts that operate on electricity, and most of them work for batteries. The battery is a kind of battery, its function is to store limited electrical energy and use it in a suitable place. It works by converting chemical energy into electrical energy. This kind of battery is installed in the battery of the electric forklift.

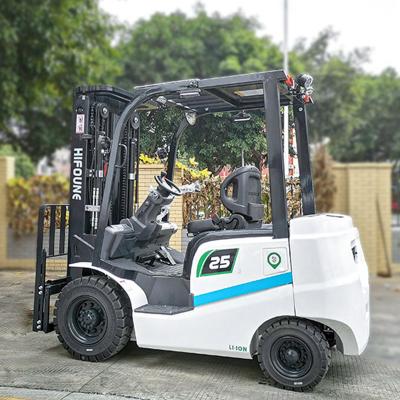

Hifoune FB25 is an electric forklift at 2.5ton capacity powered by batter, choosable at different tonnage
