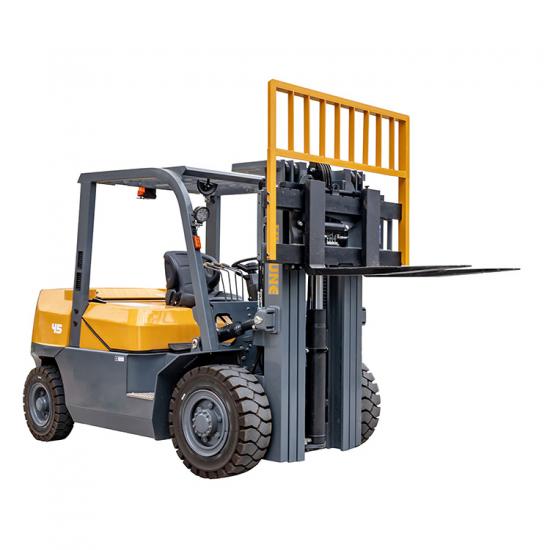

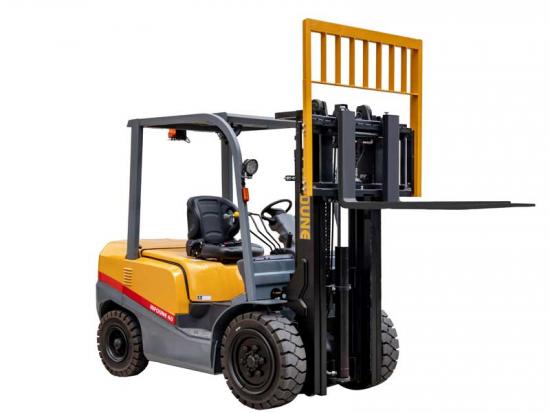

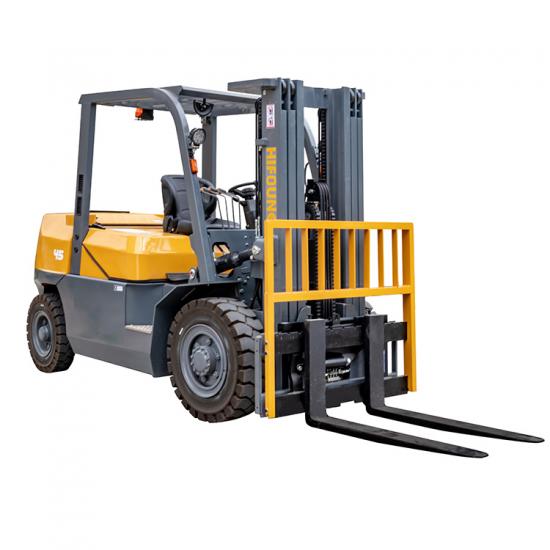

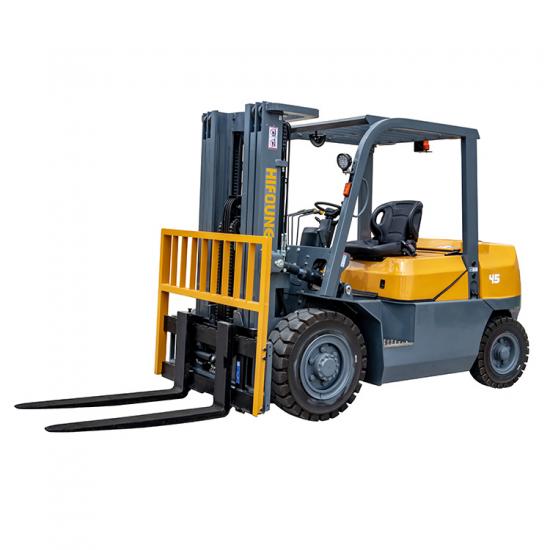

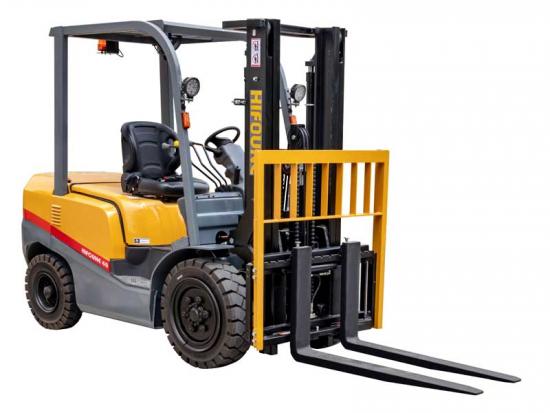

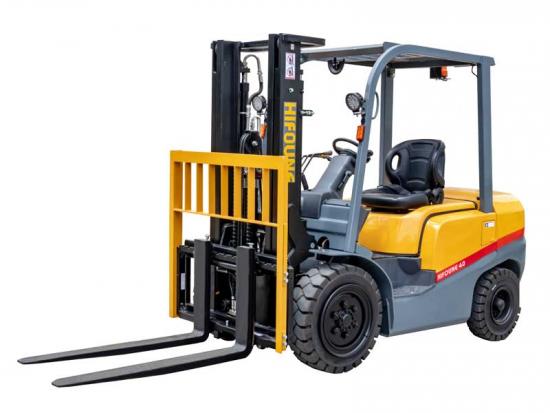

Optional Forklift Attachment Isuzu mitsubishi Engine 3Ton 4 Tons Diesel Forklift Truck For Sale

Optional Forklift Attachment Isuzu mitsubishi Engine 3Ton 4 Tons Diesel Forklift Truck For Sale

Our forklift factory internal combustion balance forklift is generally divided into: counterbalanced internal combustion forklift, container forklift (reach stacker), side forklift.

  • Brand:

    HIFOUNE
  • Item No.:

    FD40
  • Product origin:

    Xiamen,Fujian,China
  • Color:

    White, Orange, Red
  • Shipping port:

    Xiamen Port
  • Lead Time:

    7 Days
Product Details

What are the characteristics of hifoune 4 tons diesel forklift truck?We know that the hifoune internal combustion forklift is generally a tool to help us carry goods. The tail of the internal combustion counterweight forklift is usually equipped with a counterweight, which we generally call "counterweight". Internal combustion forklifts generally refer to forklifts that use diesel forklifts, gasoline or liquefied petroleum gas as fuel and are powered by engines. Electric forklifts are not internal combustion forklifts. The load capacity of our hifoune internal combustion forklifts is generally between 2 and 45 tons. Our forklift factory internal combustion balance forklift is generally divided into: counterbalanced internal combustion forklift, container forklift (reach stacker), side forklift. The material of the counterweight is generally made of HT100 cast iron, and its main function is to balance the longitudinal overturning moment generated by the mass of the cargo during operation, thereby maintaining the longitudinal stability of the forklift. Below we mainly introduce the structural characteristics of the counterweight.

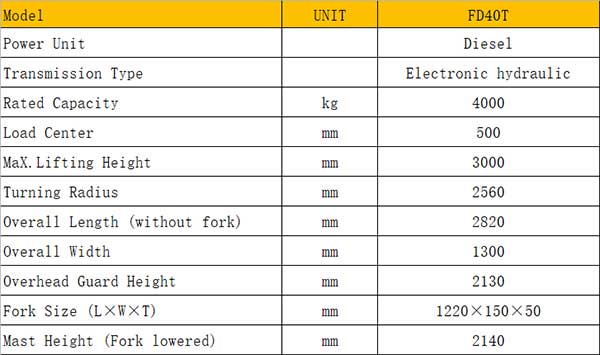

4 tons diesel forklift truck Specification


1. Selection and installation
Generally speaking, the mass of the counterweight, the position of the center of mass, and the amount of rear overhang are given by the overall layout of the vehicle. The selection of the mass of the counterweight mainly considers the longitudinal stability of the forklift when it is fully loaded and running. The quality of the counterweight directly affects the safety factor of the front and rear balance of the forklift, and is the main parameter that determines the safety factor of the forklift. When the total mass of the counterweight is determined, the center of the rear axle can be used as the benchmark, and the installation size of the counterweight can be accurately determined according to the assembly form of the counterweight on the frame. There are 2 inverted V-shaped suspension blocks on the outer side of the upper part of the tail frame of the forklift truck, and the balance weight can be fixed on them with 2 bolts.
1. Outline
The balance weight has a certain influence on the appearance of the vehicle, so its outer contour must meet the style of the vehicle as a premise. When designing the whole vehicle, important parameters such as vehicle length and turning radius should also be considered, among which the turning radius is more important than the vehicle length. The balance weight of the Hifoune series forklifts has always been in the style of a large arc. Our exterior designs are all imitated Japanese TCM designs, but our prices have great advantages.
2. When designing the counterweight, first of all, it is necessary to pay attention to matching the position of the frame, overhead guard, internal combustion engine hood, and water radiator, and try to ensure that the lines are connected smoothly and the overall style is unified. Secondly, the gap between the balance weight and the tire should be considered, especially after the forklift is raised on one side, the gap between the tire and the balance weight should also meet the requirements.
3. Ventilation holes
Since heat balance is a very important parameter of a forklift, poor heat dissipation performance can easily cause the engine cooling water temperature to be too high, which affects the performance of the forklift. Therefore, the position of the counterweight ventilation holes, the air duct and the airflow direction are particularly important. Generally speaking, the higher and larger the ventilation holes are, the better the heat dissipation; the rounded transition between the ventilation holes and the radiator is used to facilitate airflow guidance and improve heat dissipation performance.
The above description is a brief description of the features of our forklift truck manufacturer about what is a hifoune internal combustion balance forklift. If you have any different views on these, please feel free to communicate with us. We will also contact you as soon as possible.
