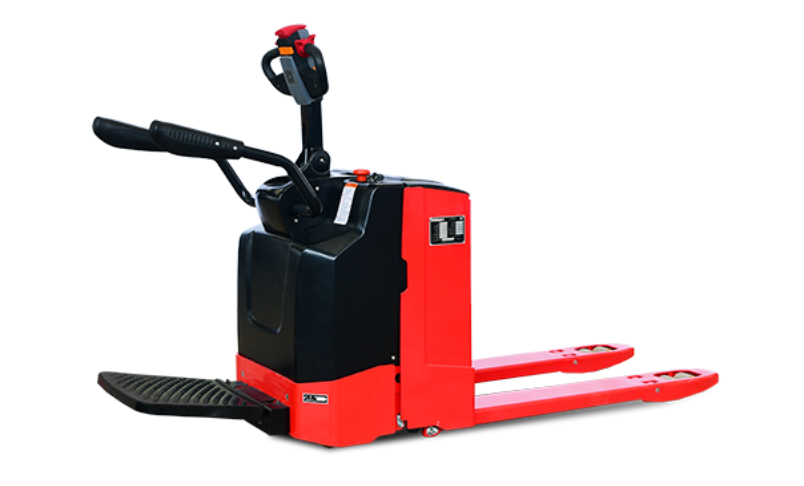

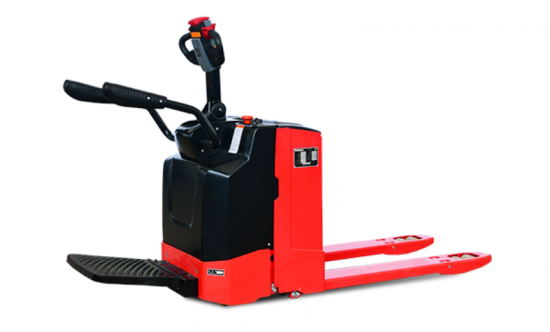

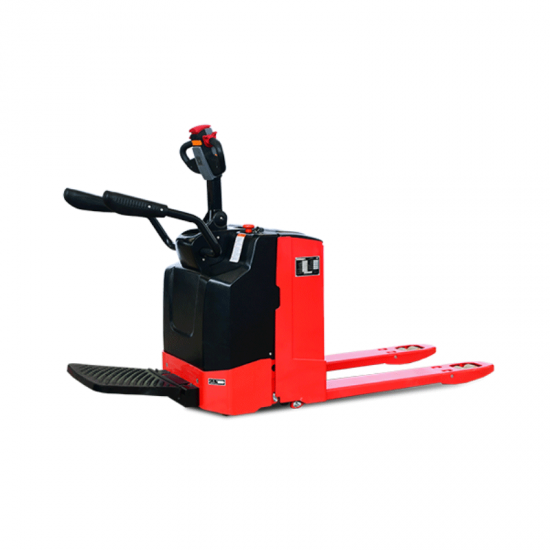

Electric Pallet truck 2.0~2.5 ton

Electric Pallet truck 2.0~2.5 ton

Hifoune PT series is electric pallet trucks at 2.0~6.0ton capacity optional, man stand-on operating type

  • Brand:

    HIFOUNE
  • Item No.:

    PT
Product Details

electric pallet truck stacker





Brand
HIFOUNE HIFOUNE
Model
PT20 PT25
Power Type
Battery Battery
Operation Type
Stand-on Stand-on
Service weight(incl. battery) kg 676 676
Rated Capacity Q(kg) 2000 2500
Load Center C(mm) 600 600
Lifting height h3(mm) 120 120
Forks size l/e/s(mm) 1150/170/56 1150/170/56
Front Overhang x(mm) 865 865
Turning radius Wa(mm) 2065/1730 2065/1730
Max. climbing ability %(tanθ ) 6/15 6/15
Driving speed(load/unload) km/h 6/6 6/6
Lifting speed(load/unload) mm/s 40/55 40/55
Lowering speed(load/unload) mm/s 35/35 35/35


2.0-2.5T Pallet Jack with Curtis controller Main Features:

1. 2.5 ton pallet truck is Maintenance-free high-power AC drive system, providing reliable driving power; 210AH large-capacity battery, strong endurance;

2.Standard CURTIS series controller, reliable and durable; AMP waterproof and dust proof plug-in, which provides reliable protection for the line and greatly reduces electrical faults;
3.Station board type, pure electronic steering, integrated joystick, safe, labor-saving, flexible operation;
4.Tall rod lifting, parallel four-bar linkage mechanism, stable lifting; mechanical structure material is strong, the electric pallet truck stacker's key parts are made of high-strength steel plate, which is sturdy and durable.



Our Factory

    Our company. is located in the Xianganindustrial zone of Xiamen torch high tech Zone. It is dedicated to providing reliable and efficient material handling equipment and solutions for customers. It is a professional company integrating R & D, manufacturing, sales and service. The company's main products include a full range of internal combustion counterbalanced forklift trucks, electric counterbalance forklift trucks, and electric warehouse equipments.



    We not only aim to provide excellent products to customers in our full range of products, but also provide excellent service to customers in all links.

3 ton diesel forklift 4 wheel small tonnage lifting truck xinchai isuzu engine

Certifications

3 ton diesel forklift 4 wheel small tonnage lifting truck xinchai isuzu engine

FAQ

Q. Why choose HIFOUNE?
A. We are a professional forklift manufacturer and supplier in Xiamen of china with more than 20 years exported experience.Most of our staff are from XGMA machinery.

Q.What are our advantages compared with other manufactures/factories?
A.Carefully select regular manufacturers for supporting spare parts, like engines, bridge,transmissions, and many parts designed and produced by ourselves. Our C series forklift adopt TCM technology, most of parts are compitible with TCM forklift, but have cheaper price.


Q. Which payment terms can we accept?
A. Normally we can work on T/T or L/C.
A.1) On T/T term, 30% payment is required in advance for production, 70% balance shall be paid before delivery or againes the copy of original B/L for old long cooperation clients.
A.2) On L/C term, 100% irrevocable LC at sight without "soft clauses" can be accepted.

Q. Can we provide OEM SERVICE?
A. HIFOUNE can provide customized products according to customers' requirements, both OEM and ODM are acceptable.
