Pallet Truck 2Ton 48V Lithium-Ion Battery

2Ton 48V Environmentally New Energy Lithium-Ion Battery Pallet Truck

Product Details

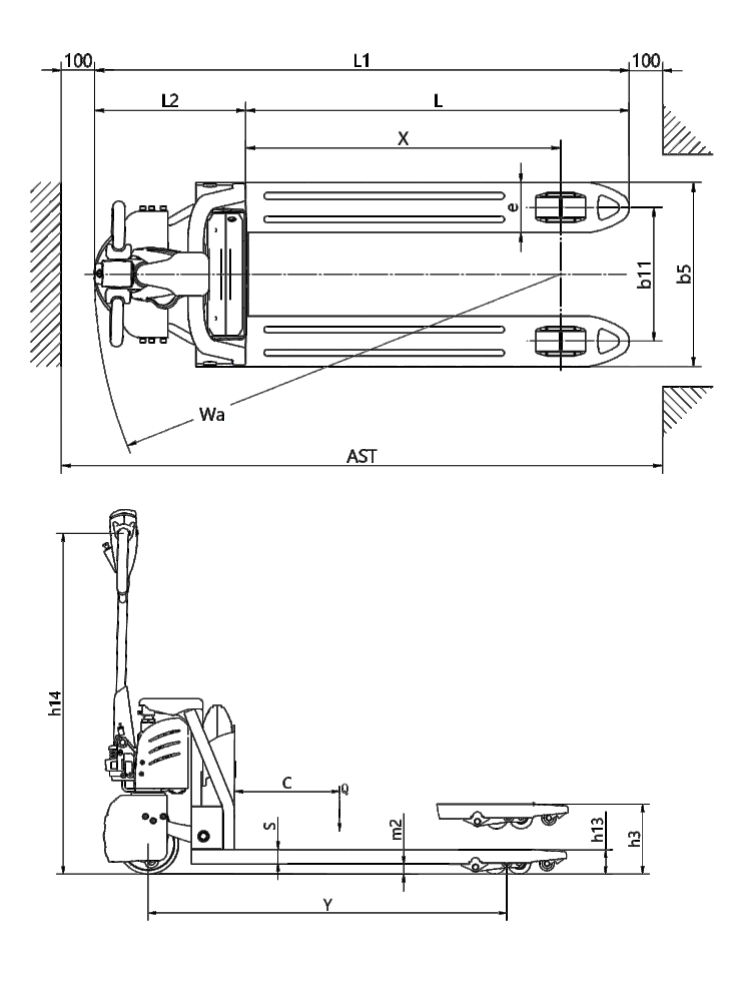

Model	Unit	SL20L3
Power unit		Electric
Operation		Pedestrian
Rated traction weight	Q (t)	2
Load centre	c (mm)	600
Axle centre to fork face	x (mm)	944
Wheel base	y (mm)	1243
Service weight with battery	kg	146
Wheels type		PU
Driving wheel size	Φ×w(mm)	Φ210×70
Bearing wheel size	Φ×w(mm)	Φ80×60
Wheels, number front/rear (x = driven)		1x/4
Track width	b11 (mm)	400/535
Lift	h3 (mm)	200
Overall height(With handle	h14 (mm)	740/1160
lowered hength	h13 (mm)	85
Overall length	l1 (mm)	1603
Length to fork face	l2 (mm)	453
Overall width	b1/ b2 (mm)	550/685
Fork dimensions	s/e/l (mm)	50/150/1150
Width of forks	b5 (mm)	550/685
Min.Ground clearance	m2 (mm)	35
Aisle width with pallet 1000 x 1200 across forks	Ast (mm)	1804
Aisle width with pallet 800 x 1200 along forks	Ast (mm)	1854
Min.Turning radius	Wa (mm)	1398
Travel speed,laden/unladen	(km/h)	4.2/4.5
Maximum climbing ability, with/without load	(%)	8/15
Service brake		Electromagnetic
Drive motor, 60 minute rating	(kW)	0.75
Lift motor rating at S3 15%	(kW)	0.8
Battery according to DIN 43531/35/36 A,B,C,no		no
Battery voltage/rated capacity	(V/Ah)	48/30
Battery weight (± 5%)	(kg)	18
Type of drive control		DC
Noise level at operator‘s ear	(dB(A))	≤70
Steer control		Mechanical
