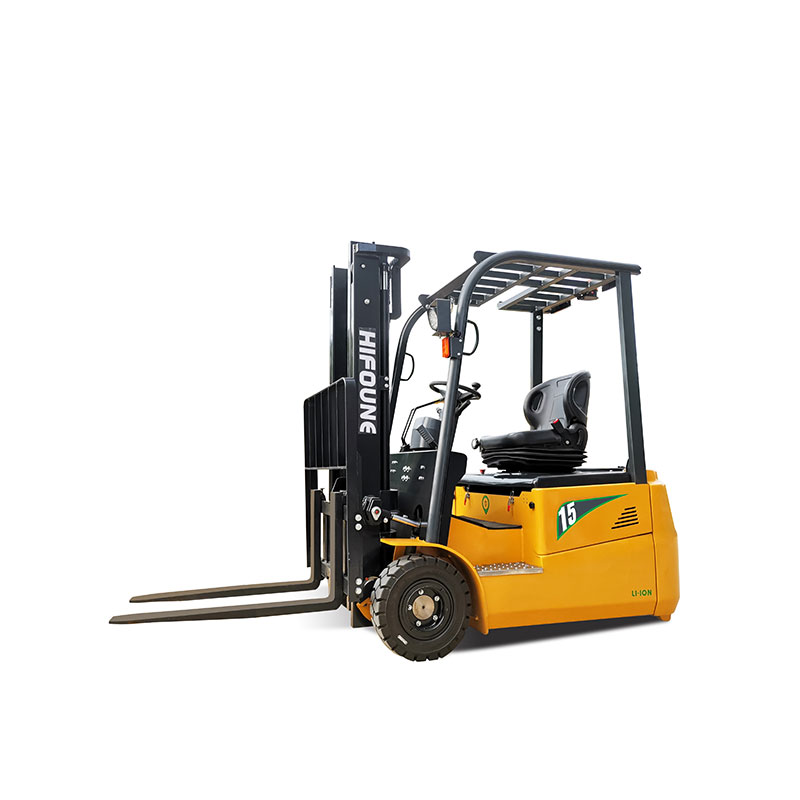

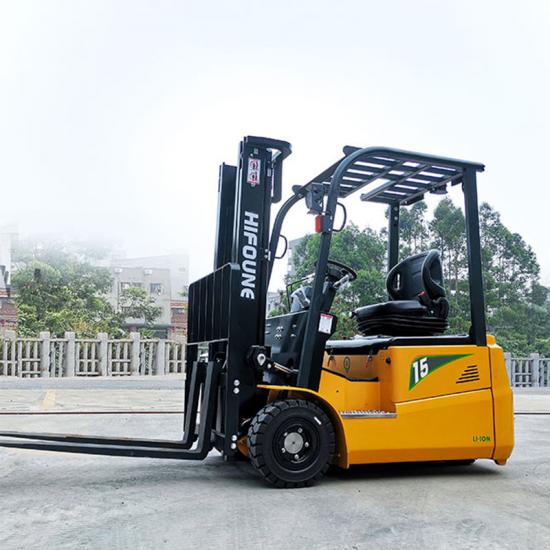

Hifoune FB15 is an electric forklift at 1.5ton capacity powered by batter, choosable at different tonnage
Brand:
HIFOUNEItem No.:
FB15
LITHIUM BATTERY COUNTERBALANCED FORKLIFT FBL15/18/20 | ||||||
content | No. | Project | UNIT | |||
Characteristic | 1 | Brand | Hifoune | Hifoune | Hifoune | |
2 | Model | FBL15(FB15) | FBL18(FB18) | FBL20(FB20) | ||
3 | Power Unit | Battery | ||||
4 | Driving mode | Seated | ||||
5 | Rated Capacity | Kg | 1500 | 1800 | 2000 | |
6 | Load Center | mm | 500 | |||
7 | Max.Lifting Height | mm | 3000 | |||
Weight | 8 | Weight(Including Battery) | kg | 3100(3400 | 3300(3600) | 3500(3800 |
9 | Battery Weight | kg |
Li-ion 240kg (L-A 640kg) |
Li-ion 240kg (L-A 760kg) |
Li-ion 240kg (L-A 760kg) |
|
Dimensions | 10 | Front Overhand | mm | 390 | ||
11 | Wheelbase | mm | 1360 | 1460 | ||
12 | Mast Tilting Angle (Fwd/Bwd) | 5/7 | ||||
13 | Mast Lowered Height | mm | 2005 | |||
14 | Free Lifting Height | mm | 120 | |||
15 | Max.Lifting Height | mm | 3970 | |||
16 | Overhead Guard Height | mm | 1996 | |||
17 | Driver's Seat Height | mm | 985 | |||
18 | Overall Length | mm | 1965 | 2065 | ||
19 | Overall Width | mm | 1120 | |||
20 | Fork Size (LxWxT) | mm | 920×100×40 | |||
21 | Min.Ground Clearance,mast | mm | 95 | |||
22 | Min.Ground Clearance,middle of chassis | mm | 90 | |||
23 | Min.Turning Radius | mm | 1640 | 1740 | ||
Tire | 24 | Tire type | Solid Tire | |||
25 | Tire Number(X=Driving Tire) | 2×/2 | ||||
26 | Front Tire Type | 18X7-8 | ||||
27 | Rear TireType | 15X4.5-8 | ||||
28 | Front Wheel Tread | mm | 950 | |||
29 | Rear Wheel Tread | mm | 200 | |||
Performance | 30 | Travelling Speed(Loaded/Unloaded) | Km/h | 14/14 | ||
31 | Lifting Speed(Loaded/Unloaded) | mm/s | 290/440 | 240/450 | ||
32 | Maximum traction force(Loaded/Unloaded) | kN | / | / | ||
33 | Max.Gradeability (Loaded/Unloaded) | % | 16/18 | 15/17 | 15/15 | |
Drive system | 34 | Travelling Motor Power | KW | 5.4AC*2 | 5.5AC*2 | |
35 | Working Motor Power | KW | 8.6AC | 9.6AC | ||
36 | Standard battery (optional),voltage/capacity | V/Ah |
Li-ion 51.2V/460Ah (L-A 48V/420Ah) |
Li-ion 51.2V/460Ah (L-A 48V/500Ah) |
Li-ion 51.2V/460Ah (L-A 48V/500Ah) |
|
37 | Standard charger(optional) | V/A |
Li-ion 48V/200A (L-A 48V/60A) |
Li-ion 48V/200A (L-A 48V/70A) |
Li-ion 48V/200A (L-A 48V/70A) |
1.5 ton 3 Wheel counterbalance Electric Forklift Main Features:
1.1.5 ton 3 Wheel Electric Forklift use Advanced Curtis controller, more stable and safer.
2.Maintenance-free AC drive system makes the vehicle react more quickly and accurately. It is equipped with a full AC system.
3.Wide-view gantry design to improve work efficiency.
4.The whole vehicle layout is more reasonable, with low center of gravity, small size and low self-weight.
Our company. is located in the Xianganindustrial zone of Xiamen torch high tech Zone. It is dedicated to providing reliable and efficient material handling equipment and solutions for customers. It is a professional company integrating R & D, manufacturing, sales and service. The company's main products include a full range of internal combustion counterbalanced forklift trucks, electric counterbalance forklift trucks, and electric warehouse equipments.
We not only aim to provide excellent products to customers in our full range of products, but also provide excellent service to customers in all links.
Q. Why choose HIFOUNE?
A. We are a professional forklift manufacturer and supplier in Xiamen of china with more than 20 years exported experience.Most of our staff are from XGMA machinery.
Q.What are our advantages compared with other manufactures/factories?
A.Carefully select regular manufacturers for supporting spare parts, like engines, bridge,transmissions, and many parts designed and produced by ourselves. Our C series forklift adopt TCM technology, most of parts are compitible with TCM forklift, but have cheaper price.
Q. Which payment terms can we accept?
A. Normally we can work on T/T or L/C.
A.1) On T/T term, 30% payment is required in advance for production, 70% balance shall be paid before delivery or againes the copy of original B/L for old long cooperation clients.
A.2) On L/C term, 100% irrevocable LC at sight without "soft clauses" can be accepted.
Q. Can we provide OEM SERVICE?
A. HIFOUNE can provide customized products according to customers' requirements, both OEM and ODM are acceptable.
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
