Brand:
HIFOUNEItem No.:
FB50Payment:
T/T LCProduct origin:
ChinaColor:
white/yellow/otherShipping port:
XiamenLead Time:
30-40 days
| LITHIUM BATTERY COUNTERBALANCED FORKLIFT FBL50C | ||||
| Manufacturer | ||||
| Content | No. | Projects | Unit | |
| Character | 1 | Brand | Hifoune | |
| 2 | Model | FBL50C | ||
| 3 | Power mode | Lithium Iron Phosphate battery | ||
| 4 | Driving mode | Seat | ||
| 5 | Load capacity | Q(Kg) | 5000 | |
| 6 | Load center | C(mm) | 500 | |
| 7 | Max.liftingheight | h4(mm) | 3000 | |
| Weight | 8 | Self-weight | kg | 6900 |
| 9 | Battery weight | kg | 390 | |
| Size | 10 | Front overhang | x(mm) | 555 |
| 11 | Wheelbase | y(mm) | 2100 | |
| 12 | Mast tilting angle (fwd/bwd) | a/β(°) | 6/12 | |
| 13 | Mast height(fork lowered) | mm | 2245 | |
| 14 | Free lifting height | mm | 150 | |
| 15 | Max.lifting height | mm | 4365 | |
| 16 | Overhead guardheight | mm | 2255 | |
| 17 | Overall length(without fork) | h1(mm) | 3230 | |
| 18 | Overall width | b1(mm) | 1490 | |
| 19 | Fork size:thickness*width*length | mm | 1220x150x55 | |
| 20 | Min.ground clearance (mast) | m1(mm) | 170 | |
| 21 | Min.ground clearance (middle of chassis) | mm | 180 | |
| 22 | Min.turning radius | Wa(mm) | 2850 | |
| Tires | 23 | Tire type | pneumatic tire | |
| 24 | Tire number(X=driving tire) | 2×/2 | ||
| 25 | Front tire | 300-15-18PR | ||
| 26 | Rear tire | 7.00-12-12PR | ||
| Performance | 27 | Travelling speed(loaded/unloaded) | Km/h | 24/25 |
| 28 | Lifting speed(loaded/unloaded) | mm/s | 470/520 | |
| 29 | Max.drawbar pull(load/unloaded) | kN | 45/35 | |
| 30 | Max.gradeability(loaded/unloaded) | % | 20/21 | |
| System | 31 | Power unit model | 50G1 | |
| 32 | Power unit cooling form | liquid cooling | ||
| 33 | Travelling motor power | KW | 20.0AC | |
| 34 | Working motor power | KW | 20.0AC | |
| 35 | Battery (voltage/capacity) | V/Ah | 153.6/230 | |
| 36 | Standard charger specifications(output) | V/A | 150/100 | |
| The standard model data would vary according to the configuration. | ||||

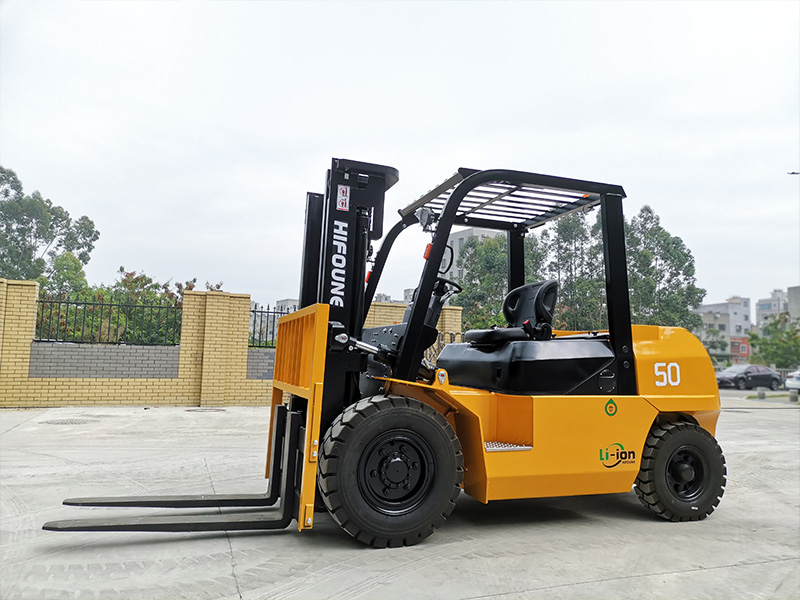

LITHIUM BATTERY FBL50C COUNTER BALANCED FORKLIFT
1.Extra-wide mast with wide field of view;
2.Excellent ergonomics technology;
3.Short body, flexible space;
4.Fast charging port, charge and use at any time;
5.System self-inspection to ensure that all parts meet the working conditions before starting the forklift;
6.Completely cut off the lithium battery power supply to avoid lithium battery power loss due to long-term storage;
7.Reduce copper consumption, reduce motor electromagnetic noise, improve heat dissipation performance;
8.High space utilization rate, andincrease overall efficiency by 20%;
9.Intelligent lithium battery charger;
10.Open the hood at a large anglefor easy maintenance;
11.Large capacity lithium battery;
12.Large-screen interactive display instrument;
