Diesel Forklift A-series 4.0 ton

Diesel Forklift A-series 4.0 ton

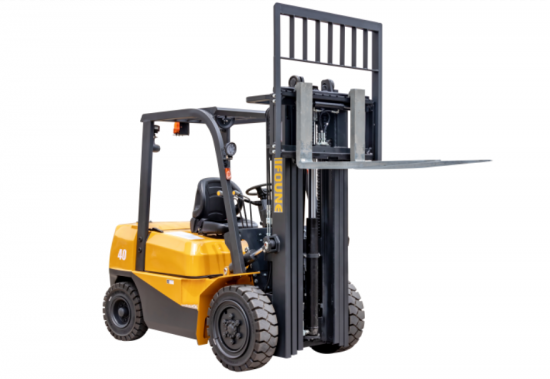

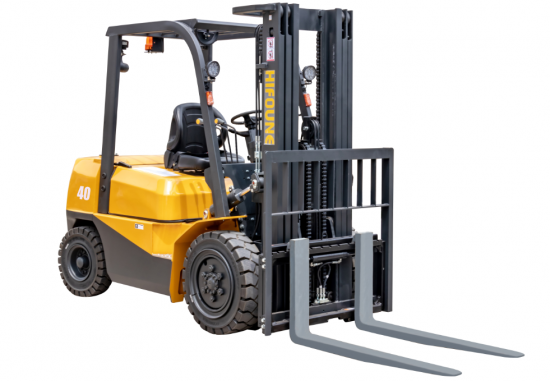

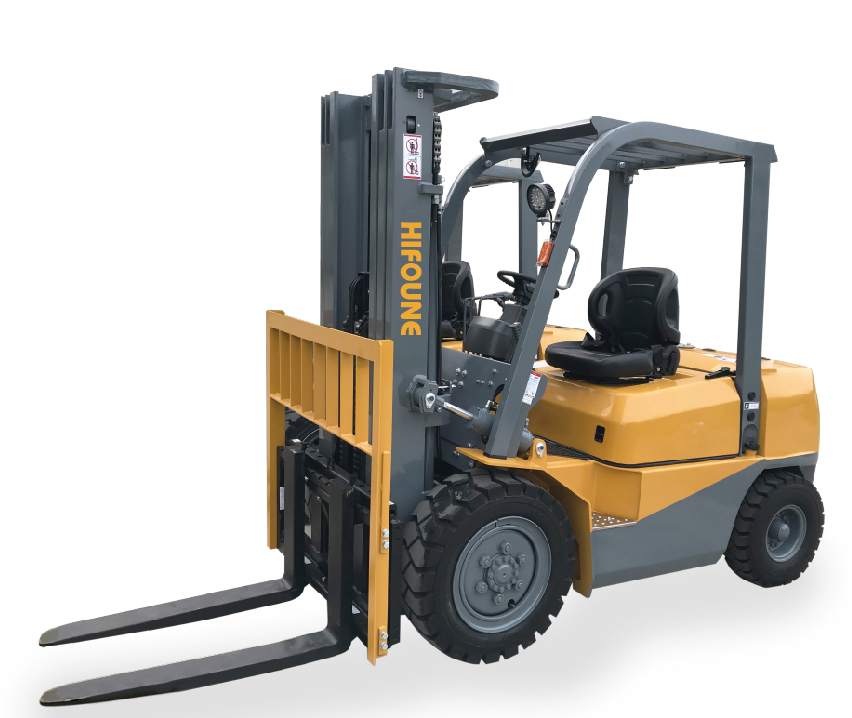

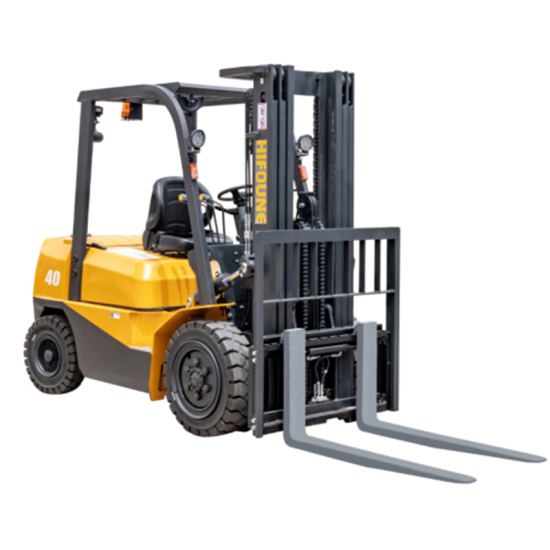

Hifoune FD40T is a forklift at 4.0 ton capacity which uses diesel engine, choosable engine such as xinchai isuzu,etc, color customizable, please contact us for more information.

  • Item No.:

    FD40T
  • Payment:

    T/T LC
  • Product origin:

    China
  • Color:

    white/yellow/other
  • Shipping port:

    Xiamen
  • Lead Time:

    30-40 days
Product Details

Model UNIT FD35T FD40T FD50TC
Specifications Power Unit Diesel
Operator Type Driver/seat
Transimission Bo× Type Electronic hydraulic transmission
Rated Capacity kg 3500 4000 5000
Load Center mm 500 500 600
Max.Lifting Height mm 3000 3000 3000
Tire Type Pneumatic Tyre
Tire Number  Front 2 2 2
Rear 2 2 2
Tire Size  Front 28×9-15-14PR 250-15-16PR 300-15-18PR
Rear 6.5-10-10PR 6.5-10-10PR 7.00-12-12PR
Performance Lifting
Speed
Loaded mm/s 460 430 480
Unloaded 500 480 520
Lowering
Speed
Loaded mm/s 420 400 480
Unloaded 400 380 450
Travelling
Speed
Loaded km/h 20 20 19
Unloaded 21 21 20
Max.Gradeability (Loaded) % 20 20 20
Max.Drawbar Pull (Loaded) kn 17 18 18
Mast Tilting Angle (Fwd/Bwd) deg 6/12 6/12 6/12
Free Lifting Height mm 150 150 150
Turning Radius mm 2415 2560 2850
Dimensions Overall Length (with fork) mm 3840 3930 4300
Overall Width mm 1240 1300 1490
Overhead Guard Height mm 2145 2155 2255
Fork Size (L×W×T) mm 1220×125×50 1220×150×50 1220×150×55
Mast Height (Fork lowered) mm 2140 2140 2245
Battery (Voltage/Capacity) V/Ah 12/90 12/90 2×12/90
Truck Weight kg 4500 4900 6900
Fuel Tank Capacity L 70 70 140
Engine Brand  XINCHAI ISUZU MITSUBISHI XINCHAI ISUZU MITSUBISHI XINCHAI MITSUBISH
Model C490 4JG2 S4S A498 4JG2 S4S 4D35ZG31 S6S
Rated Power kw/rpm 40/2650 44.8/2450 35.3/2250 42/2300 44.8/2450 35.3/2250 60/2200 52/2300
Rated torque n-m/rpm 160/1600-2000 186/1800 177/1700 206/1650 186/1800 177/1700 300/1600~1800 248/1700
Number Of Cylinder 4 4 4 4 4 4 4 6
Displacement 2.67 3.06 3.331 3 3.06 3.331 3.857 4.996

Product Features

High quality

--Adopt gradeability improving style electronic hydraulic transmission,compare with other models:efficiency 5% improved,climbing torque 8% increased,noise 3~5dB reduced,thermal equilibrium temperature 8-10°decreased;
--The super large capacity aluminum tube belt radiator and optimized heat dissipation channel further improve the heat dissipation capacity of the vehicle; -- Load sensing priority steering hydraulic system is adopted to reduce pressure loss of hydraulic system, save energy and improve operation comfort.
High security
--Introducing advances technology from Germany,the unique single chain has greatly enhanced he front view while working.
--All car LED lights, high brightness, long life, energy saving and environmental protection.
High comfort
--The new suspension system,adjustable seat,allowing the driver to feel more comfortable and reducing fatigue during long operations;
--The combined color instrument has strong human-machine interaction and timely and accurately feedback the running state of vehicles.
--Spacious control space, comfortable seats, enjoy the pleasure of riding.
Rich options
ISUZU engine, high exhaust device, air prefilter, fireproof cap, solid tire, two stage free lift mast, three stage free lift mast , widening fork frame, fork sleeve, side shifter, paper roll clamp, bale clamp, carton clamp, block clamp, rotators, drum clamp, push-pull, etc.

Our Factory

    Our company. is located in the Xianganindustrial zone of Xiamen torch high tech Zone. It is dedicated to providing reliable and efficient material handling equipment and solutions for customers. It is a professional company integrating R & D, manufacturing, sales and service. The company's main products include a full range of internal combustion counterbalanced forklift trucks, electric counterbalance forklift trucks, and electric warehouse equipments.



    We not only aim to provide excellent products to customers in our full range of products, but also provide excellent service to customers in all links.



Certifications



FAQ

Q. Why choose HIFOUNE?
A. We are a professional forklift manufacturer and supplier in Xiamen of china with more than 20 years exported experience.Most of our staff are from XGMA machinery.

Q.What are our advantages compared with other manufactures/factories?
A.Carefully select regular manufacturers for supporting spare parts, like engines, bridge,transmissions, and many parts designed and produced by ourselves. Our C series forklift adopt TCM technology, most of parts are compitible with TCM forklift, but have cheaper price.


Q. Which payment terms can we accept?
A. Normally we can work on T/T or L/C.
A.1) On T/T term, 30% payment is required in advance for production, 70% balance shall be paid before delivery or againes the copy of original B/L for old long cooperation clients.
A.2) On L/C term, 100% irrevocable LC at sight without "soft clauses" can be accepted.

Q. Can we provide OEM SERVICE?
A. HIFOUNE can provide customized products according to customers' requirements, both OEM and ODM are acceptable.
